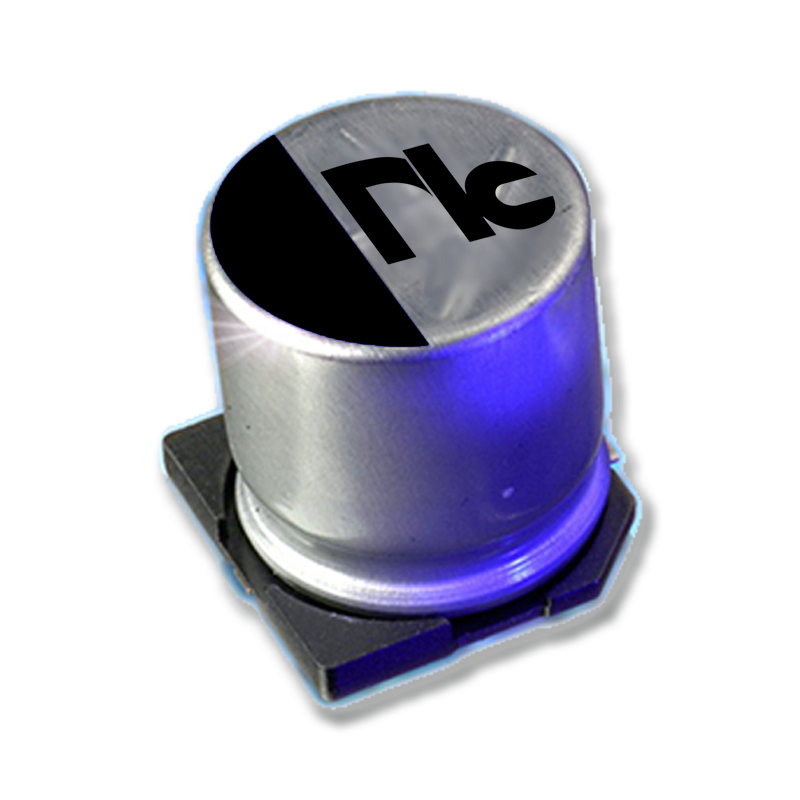

Aluminum Electrolytic Capacitors
NIC offers a comprehensive range of aluminum electrolytic capacitors, supporting applications from commercial to automotive grade. These capacitors come in a wide range of capacitance values (0.1uF to 82,000uF) and voltage ratings (2VDC to 550VDC), offering different performance levels of ripple current, operating temperature ranges, and load life ratings. NIC’s solid and hybrid polymer aluminum electrolytic capacitors offer the best in ESR, ripple current, and overall performance.
Browse Aluminum Electrolytic Capacitors
Features & Advantages
- V-chip, flat-chip, radial, snap-in, and screw terminal constructions available
- Low ESR and high ripple current rated for energy and power-type applications
- Operating temperatures from -55° C to 150° C max
Resources
Series Listing
Showing 1 - 24 of 82 results
NACEW
SMTAluminum Electrolytic Capacitors
General Purpose Wide Temperature +105C V-Chip
Operating Range: -55°C ~ 105°C
Capacitance: 0.1uF ~ 0.012F
Voltage: 6.3V ~ 100V
ESR: 68mΩ ~ 1.99KΩ
Load Life: 2000Hrs
Active
Automotive
NACNW
SMTAluminum Electrolytic Capacitors
Bi-Polar; Wide Temp; V-Chip
Operating Range: -55°C ~ 105°C
Capacitance: 0.1uF ~ 47uF
Voltage: 6.3V ~ 63V
ESR: 8.47Ω ~ 2.98KΩ
Load Life: 1000Hrs
Active
Design Reg
NACV
SMTAluminum Electrolytic Capacitors
High Voltage 160V~400VDC +105C V-Chip
Operating Range: -40°C ~ 105°C
Capacitance: 2.2uF ~ 82uF
Voltage: 160V ~ 400V
ESR: 3.66Ω ~ 188.49Ω
Load Life: 5000Hrs
Active
Automotive
Design Reg
NACX
SMTAluminum Electrolytic Capacitors
5.5mm H; Low ESR & Z +105C V-Chip
Operating Range: -55°C ~ 105°C
Capacitance: 0.47uF ~ 220uF
Voltage: 6.3V ~ 63V
ESR: 0.6Ω ~ 10Ω
Load Life: 1000Hrs
Active
Automotive
Design Reg
NACZ
SMTAluminum Electrolytic Capacitors
Industry Standard; Low ESR & Z +105C V-Chip
Operating Range: -55°C ~ 105°C
Capacitance: 4.7uF ~ 6800uF
Voltage: 6.3V ~ 50V
ESR: 52mΩ ~ 2.9Ω
Load Life: 2000Hrs
Active
Automotive
Active
Automotive
Design Reg
NATK
SMTAluminum Electrolytic Capacitors
'+125C Extended Temperature 2000~5000 Hr; V-Chip
Operating Range: -40°C ~ 125°C
Capacitance: 10uF ~ 3900uF
Voltage: 16V ~ 50V
ESR: 40mΩ ~ 2Ω
Load Life: 5000Hrs
Active
Automotive
Design Reg
NATT
SMTAluminum Electrolytic Capacitors
'+125C Extended Temperature (1KHr ~ 2KHr); V-Chip
Operating Range: -55°C ~ 125°C
Capacitance: 1uF ~ 4700uF
Voltage: 6.3V ~ 100V
ESR: 80mΩ ~ 3.5Ω
Load Life: 2000Hrs
Active
Automotive
Design Reg
NATU
SMTAluminum Electrolytic Capacitors
'+125C Extended Temperature (4KHr); V-Chip
Operating Range: -40°C ~ 125°C
Capacitance: 100uF ~ 330uF
Voltage: 25V ~ 35V
ESR: 0.2Ω ~ 0.3Ω
Load Life: 4000Hrs
Active
Automotive
Design Reg
NAUJ
SMTAluminum Electrolytic Capacitors
Ultra High Temperature +150degC Rated; V-Chip
Operating Range: -40°C ~ 150°C
Capacitance: 100uF ~ 470uF
Voltage: 25V ~ 35V
ESR: 0.15Ω ~ 0.2Ω
Load Life: 1000Hrs
Active
Automotive
Design Reg
NAWP
SMTAluminum Electrolytic Capacitors
Wide Temperature, Reduced Size +105C (1KHr); V-Chip
Operating Range: -40°C ~ 105°C
Capacitance: 4.7uF ~ 220uF
Voltage: 6.3V ~ 50V
ESR: 2.64Ω ~ 42.35Ω
Load Life: 1000Hrs
Active
Design Reg
NAWU
SMTAluminum Electrolytic Capacitors
'+105C Wide Temperature (5000 Hr); V-Chip
Operating Range: -40°C ~ 105°C
Capacitance: 0.1uF ~ 220uF
Voltage: 6.3V ~ 400V
ESR: 2.26Ω ~ 2.32KΩ
Load Life: 5000Hrs
Active
Automotive
Design Reg
NAYT
SMTAluminum Electrolytic Capacitors
'+135C Extended Temperature (2KHr); V-Chip
Operating Range: -40°C ~ 135°C
Capacitance: 22uF ~ 1000uF
Voltage: 16V ~ 50V
ESR: 0.1Ω ~ 1.2Ω
Load Life: 2000Hrs
Active
Automotive
Design Reg
NAZH
SMTAluminum Electrolytic Capacitors
Low ESR & Z, +105C High Reflow Rated; V-Chip
Operating Range: -55°C ~ 105°C
Capacitance: 10uF ~ 2200uF
Voltage: 6.3V ~ 50V
ESR: 60mΩ ~ 2.3Ω
Load Life: 2000Hrs
Active
Automotive
Design Reg
NAZHA
SMTAluminum Electrolytic Capacitors
Higher Capacitance per Case Size; 3000 to 5000 hrs; V-Chip
Operating Range: -55°C ~ 105°C
Capacitance: 330uF ~ 2,200uF
Voltage: 6.3V ~ 35V
ESR: 0.06Ω ~ 0.08Ω
Load Life: 3000Hrs - 5000Hrs
Focus
Automotive
Design Reg
NAZJ
SMTAluminum Electrolytic Capacitors
Low ESR & Z, +105C (2KHr); V-Chip
Operating Range: -55°C ~ 105°C
Capacitance: 10uF ~ 1800uF
Voltage: 6.3V ~ 50V
ESR: 60mΩ ~ 0.85Ω
Load Life: 2000Hrs
Active
Automotive
Design Reg
NAZP
SMTAluminum Electrolytic Capacitors
Low Z & High RCR V-Chip -25 ~ +105C (7KHrs)
Operating Range: -25°C ~ 105°C
Capacitance: 100uF ~ 470uF
Voltage: 16V ~ 50V
ESR: 0.16Ω ~ .53Ω
Load Life: 7000Hrs
Active
Design Reg
NAZR
SMTAluminum Electrolytic Capacitors
High CV, Low Z & High RCR, V-Chip, -55 ~ +105C (5KHrs)
Operating Range: -55°C ~ 105°C
Capacitance: 47uF ~ 10,000uF
Voltage: 6.3V ~ 100V
ESR: 29mΩ ~ .2Ω
Load Life: 5000Hrs
Focus
Design Reg
NAZU
SMTAluminum Electrolytic Capacitors
Low ESR & Z, +105C (3KHr), Reduced Size; HIGHER REFLOW RATED; V-Chip
Operating Range: -40°C ~ 105°C
Capacitance: 10uF ~ 330uF
Voltage: 6.3V ~ 50V
ESR: 0.6Ω ~ 2Ω
Load Life: 3000Hrs
Active
Automotive
Design Reg
NAZV
SMTAluminum Electrolytic Capacitors
Low ESR & Z, +105C LONG LIFE (7,000 ~ 10,000Hrs); V-Chip
Operating Range: -25°C ~ 105°C
Capacitance: 10uF ~ 1000uF
Voltage: 6.3V ~ 50V
ESR: 0.16Ω ~ 2.2Ω
Load Life: 10000Hrs
Focus
Design Reg
NNR
PTHAluminum Electrolytic Capacitors
Bi-Polar; Radial
Operating Range: -40°C ~ 85°C
Capacitance: 0.47uF ~ 1000uF
Voltage: 10V ~ 100V
ESR: 0.3Ω ~ 352.92Ω
Load Life: 2000Hrs
Active
NRB-KQ
PTHAluminum Electrolytic Capacitors
Reduced Size Alum. E-Cap
Operating Range: -40°C ~ 105°C
Capacitance: 27uF ~ 220uF
Voltage: 400V ~ 450V
ESR: 1.131Ω ~ 12.287Ω
Load Life: 2000Hrs
Active
Design Reg
