Part Number Specifications
Part Numbers:NMC1812X5R107M6.3TRPLPFNMC0805X5R107M6.3TRPLPFNMC1206X5R107M10TRPLPFNMC1206X5R107M6.3TRPLPFNMC1210X5R107M16TRPLPF
Product SeriesNMC High CapNMC High CapNMC High CapNMC High CapNMC High Cap
Product DescriptionHigh Capacitance X7R MLCCHigh CV X5R Dielectric MLCCHigh CV X5R Dielectric MLCCHigh Capacitance X5R MLCCHigh CV X5R Dielectric MLCC
Operating Temperature-55°C ~ 85°C-55°C ~ 85°C-55°C ~ 85°C-55°C ~ 85°C-55°C ~ 85°C
Capacitance100µF ± 20%100µF ± 20%100µF ± 20%100µF ± 20%100µF ± 20%
Voltage6.3Vdc6.3Vdc10Vdc6.3Vdc16Vdc
Leakage Current----------
Dissipation Factor10%15%10%10%10%
ESR----------
Ripple Current Rating----------
Load Life----------
DielectricX5RX5RX5RX5RX5R
Dielectric Tolerance+/-15%+/-15%+/-15%+/-15%+/-15%
IR1Mohm min.1 Mohm min.1 Mohm min.0.5Mohm min.0.5 Mohm min.
Dielectric Absorption----------
Test Conditions120Hz, 0.5V ±0.2Vrms (ALC on)120Hz, 0.5V ±0.2Vrms (ALC on)120Hz, 0.5V ±0.2Vrms (ALC on)120Hz, 0.5V ±0.2Vrms (ALC on)120Hz, 0.5V ±0.2Vrms (ALC on)
Temperature Conditions----------
Dielectric Withstanding Voltage250% of Rated Voltage for 1 ~ 5 seconds, 50mA max.250% of Rated Voltage for 1 ~ 5 seconds, 50mA max.250% of Rated Voltage for 1 ~ 5 seconds, 50mA max.250% of Rated Voltage for 1 ~ 5 seconds, 50mA max.250% of Rated Voltage for 1 ~ 5 seconds, 50mA max.
QN/AN/AN/AN/AN/A

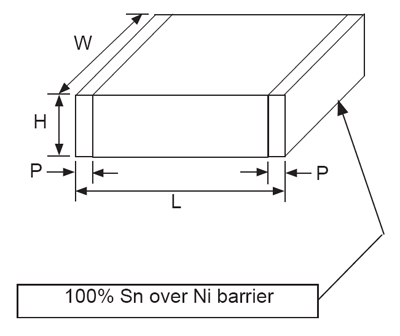

Dimensions

L4.5 +/- 0.4
W3.2 +/- 0.3
H3.1max.
P0.30 min.
L2.0 +/- 0.2
W1.25 +/- 0.2
H1.45 max.
P0.20~0.75
L3.2 +/- 0.2
W1.6 +/- 0.2
H1.9 max.
P0.25~0.85
L3.2 +/- 0.2
W1.6 +/- 0.2
H1.8max.
P0.25~0.85
L3.20 +/- 0.2
W2.5 +/- 0.2
H2.8 max.
P0.25~1.00
