NSPE-HC101M35V6.3X8NLBYF

NSPE-HC101M35V6.3X8NLBYF
Product SeriesNSPE-HC
Series DescriptionHigh Ripple Current Hybrid Alum E-cap
Automotive Grade ComponentYes
Temperature Range-55°C ~ 105°C
Capacitance100µF ± 20%
Voltage35Vdc
Leakage Current35µA
Dissipation Factor0.12
ESR30Ω (100KHz @ +20℃)
Ripple Current2000mA (100KHz @ +105℃)
Load Life5000Hrs @ 105°C

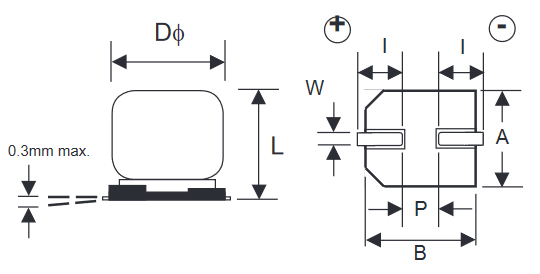

Diameter6.3 ± 0.5
Length8.0 max.
A6.6 ± 0.2
B6.6 ± 0.2
I2.5 ref.
W0.5 ~ 0.8
P2.2 ref.

General Info

 NSPE-HC is a NIC Preferred Series available for new designs

NSPE-HC101M35V6.3X8NLBYF is preferred and available for new designs

Specification Info

View Datasheet on Series Page
