NRC06J105TRF

Part NumberNRC06J105TRF
Product SeriesNRC
Series DescriptionThick Film Chip Resistors
AECQ200 Qualified?YES
Mount TypeSMT
Operating Temperature-55°C ~ 155°C
Resistance1MΩ ± 5%
Power Rating @ 70°C100mW
Working Voltage Rating50Vdc
Overload Voltage Rating100Vdc
Temperature Coefficient (PPM/°C)±200PPM

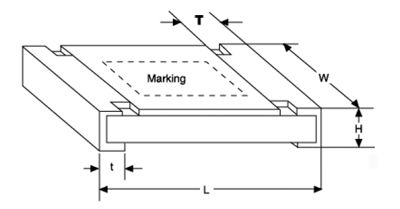

L1.60 ± 0.15
W0.80 ± 0.15
H0.45 ± 0.10
T10.30 ± 0.15
T0.30 ± 0.15

General Info

 NRC is a NIC Preferred Series available for new designs

NRC06J105TRF is preferred and available for new designs

Specification Info

View Datasheet on Series Page
