NWCLT5353R10R0KBF

Part NumberNWCLT5353R10R0KBF
Product Series
Series DescriptionRectangular Transmitter Inductive Wireless Charging Coil
Construction TypeTransmitter Coil, For Charging Designs
Operating Range
(Including Temp. Rise)		-25°C ~ 85°C
Inductance (@ 100Khz)10µH ± 10%
Max Power15W
DCR55mΩ±%

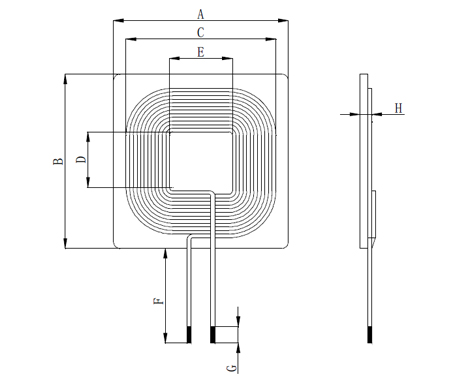

A53 ± 1
B53 ± 1
C48REF
D19REF
E19REF
F30 ± 3
G5 ± 2
H3.5REF
Coils1
Wire0.08mm*105
Turns12

General Info

 NWC

NWCLT5353R10R0KBF is end of life

Specification Info
