| Part Number | NWCLT5050R6R30KBF |
|---|---|
| Product Series | |
| Series Description | Rectangular Transmitter Inductive Wireless Charging Coil |
| Construction Type | Transmitter Coil, For Charging Designs |
| Operating Range (Including Temp. Rise) | -25°C ~ 85°C |
| Inductance (@ 100Khz) | 6.3µH ± 10% |
| Max Power | 5W |
| DCR | 19mΩ±% |
| Isat | 36A |
| Irms | 10.6A |
| Current Inductance Drop | -5% |
| Current Temp Rise | +40degC |
| SRF | 6.46Mhz |
| Q | 72 (@ 0Khz) |
 | |

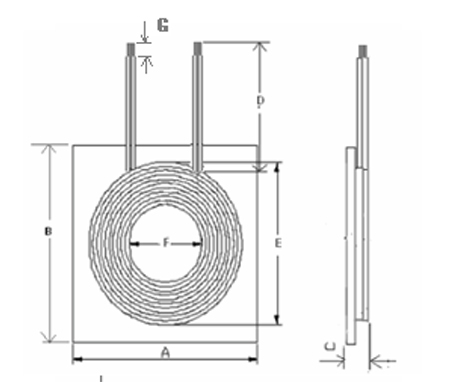

| A | 50 ± 1 | B | 50 ± 1 | C | 3.5 ± 0.5 | D | 50 ± 3 | E | 44MAX | F | 20.5 ± 0.5 | G | 5 ± 2 | Coils | 1 | Wire | 0.08×105X2P | Turns | 10 |
