NWCLT5050C6R30KWNBF

Part NumberNWCLT5050C6R30KWNBF
Product Series
Series DescriptionCircular Transmitter Inductive Wireless Charging Coil + NTC
Construction TypeTransmitter Coil, For Charging Designs
Operating Range
(Including Temp. Rise)		-25°C ~ 85°C
Inductance (@ 100Khz)6.3µH ± 10%
Max Power5W
DCR38mΩ±%
Rntc10KΩ

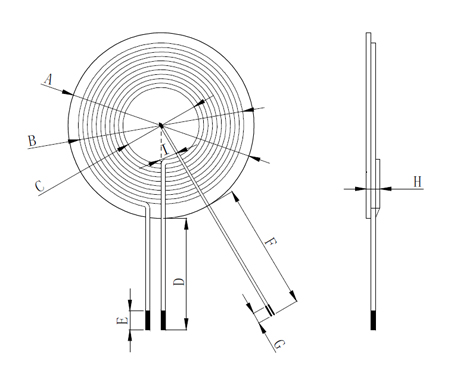

A38.5MAX
B32.5MAX
C1.0MAX
D50REF
E33REF
F27.5REF
G17.5REF
H12.2REF
I5REF
Coils1
Wire0.08mm*105
Turns10

General Info

 NWC

NWCLT5050C6R30KWNBF is end of life

Specification Info

View Datasheet on Series Page
