| Part Number | NWCLT5050C6R30K50LLWBF |
|---|---|
| Product Series | |
| Series Description | Circular Transmitter Inductive Wireless Charging Coil |
| Construction Type | Transmitter Coil, For Charging Designs |
| Operating Range (Including Temp. Rise) | -25°C ~ 85°C |
| Inductance (@ 100Khz) | 6.3µH ± 10% |
| Max Power | 5W |
| DCR | 38mΩ±% |
 | |

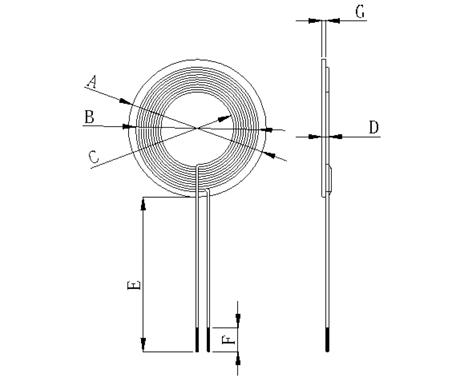

| A | 50 ± 0.5 | B | 42.5 ± 0.5 | C | 20.5 ± 0.5 | D | 2.3 ± 0.15 | E | 50Typ | F | 2.5 ± 1 | G | 1 ± 0.1 | Coils | 1 | Wire | 0.08mm*105 | Turns | 10 |
