| Part Number | NWCLT5050C24R0KBF |
|---|---|
| Product Series | |
| Series Description | Circular Transmitter Inductive Wireless Charging Coil |
| Construction Type | Transmitter Coil, For Charging Designs |
| Operating Range (Including Temp. Rise) | -25°C ~ 85°C |
| Inductance (@ 100Khz) | 24µH ± 10% |
| Max Power | 5W |
| DCR | 72mΩ±% |
 | |

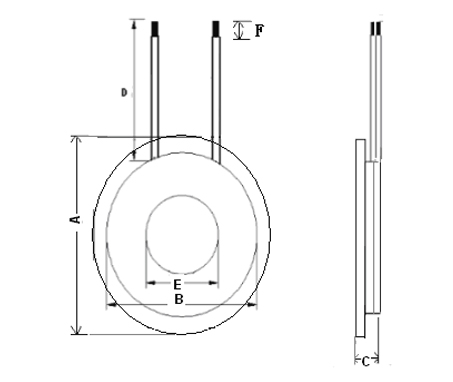

| A | 50 ± 1 | B | 44MAX | C | 3.5 ± 0.5 | D | 50 ± 3 | E | 20.5 ± 0.5 | F | 5 ± 2 | Coils | 1 | Wire | 0.08×105 | Turns | 20 |
