NWCLT3535C6R00KBF

Part NumberNWCLT3535C6R00KBF
Product Series
Series DescriptionCircular Transmitter Inductive Wireless Charging Coil
Construction TypeTransmitter Coil, For Charging Designs
Operating Range
(Including Temp. Rise)		-25°C ~ 85°C
Inductance (@ 100Khz)6µH ± 10%
Max Power4W
DCR60mΩ±%

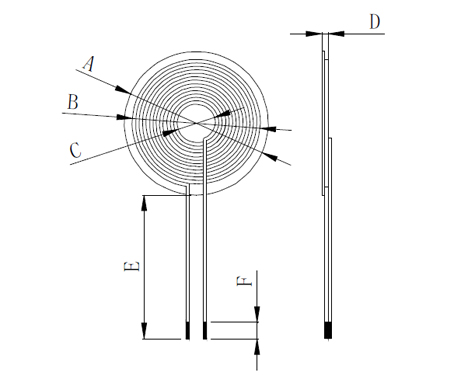

A35Max
B32.5REF
C5 REF
D2 REF
E16 ± 2
F4 REF
Coils1
Wire0.08mm*60
Turns16

General Info

 NWC

NWCLT3535C6R00KBF is end of life

Specification Info

View Datasheet on Series Page
