NWCLT3030C6R30KBF

Part NumberNWCLT3030C6R30KBF
Product Series
Series DescriptionCircular Transmitter Inductive Wireless Charging Coil
Construction TypeTransmitter Coil, For Charging Designs
Operating Range
(Including Temp. Rise)		-25°C ~ 85°C
Inductance (@ 100Khz)6.3µH ± 10%
Max Power4W
DCR0.14Ω±%
Q26 (@ 0Khz)

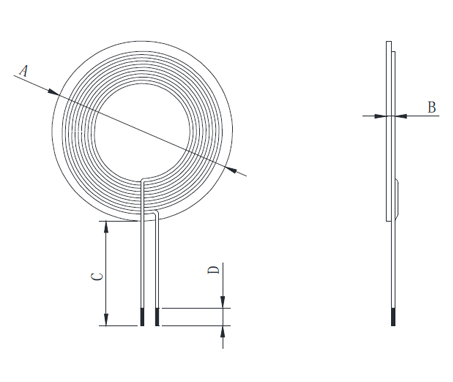

A15 REF
B2.0 REF
C25 REF
D3 REF
Coils1
Wire2UEW 155 0.08*24
Turns12

General Info

 NWC

NWCLT3030C6R30KBF is end of life

Specification Info

View Datasheet on Series Page
