NWCLT1515C6R30KBF

Part NumberNWCLT1515C6R30KBF
Product Series
Series DescriptionCircular Transmitter Inductive Wireless Charging Coil
Construction TypeTransmitter Coil, For Charging Designs
Operating Range
(Including Temp. Rise)		-25°C ~ 85°C
Inductance (@ 100Khz)6.3µH ± 10%
Max Power2W
DCR0.12Ω±%
Q30 (@ 0Khz)

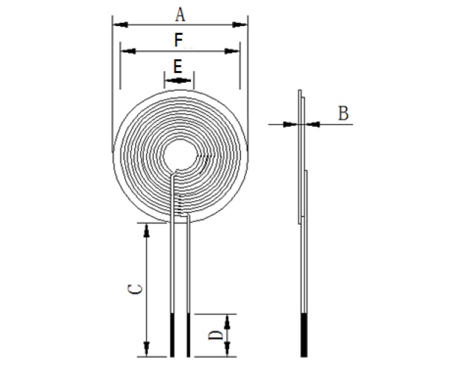

A15 REF
B2.0 REF
C25 REF
D3 REF
E5 REF
F14.5REF
Coils1
Wire2HBUEW 155 0.08*24
Turns22

General Info

 NWC

NWCLT1515C6R30KBF is end of life

Specification Info

View Datasheet on Series Page
