| Part Number | NWCLR4832R10R5KBF |
|---|---|
| Product Series | |
| Series Description | Rectangular Receiver Inductive Wireless Charging Coil |
| Construction Type | Receiver Coil, For Charging Designs |
| Operating Range (Including Temp. Rise) | -25°C ~ 85°C |
| Inductance (@ 100Khz) | 10.5µH ± 10% |
| Max Power | 5W |
| DCR | 0.17Ω±% |
| Q | 28 (@ 0Khz) |
 | |

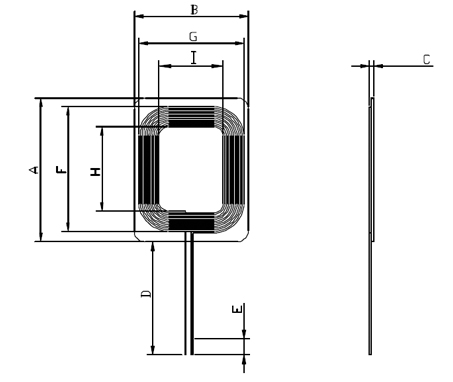

| A | 48 ± 1 | B | 32 ± 1 | C | 1.2Max | D | 50 ± 3 | E | 5 ± 2 | F | 39.5REF | G | 28.5REF | H | 23.2REF | I | 11.8REF | Coils | 1 | Wire | 0.3*2P | Turns | 13 |
