NWCLR3832R11R0KBF

Part NumberNWCLR3832R11R0KBF
Product Series
Series DescriptionRectangular Receiver Inductive Wireless Charging Coil
Construction TypeReceiver Coil, For Charging Designs
Operating Range
(Including Temp. Rise)		-25°C ~ 85°C
Inductance (@ 100Khz)11µH ± 10%
Max Power5W
DCR0.22Ω±%

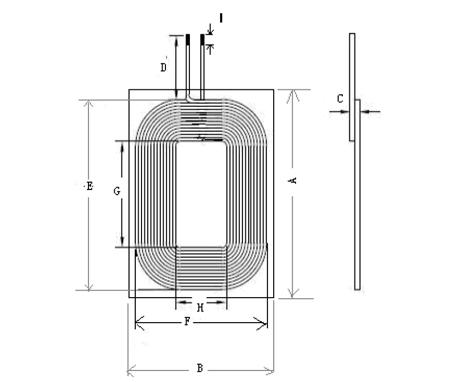

A38.5MAX
B32.5MAX
C1.0MAX
D50REF
E33REF
F27.5REF
G17.5REF
H12.2REF
I5REF
Coils1
Wire0.25×2P
Turns14

General Info

 NWC

NWCLR3832R11R0KBF is end of life
