NWCLR2020R12R0KBF

Part NumberNWCLR2020R12R0KBF
Product Series
Series DescriptionRectangular Receiver Inductive Wireless Charging Coil
Construction TypeReceiver Coil, For Charging Designs
Operating Range
(Including Temp. Rise)		-25°C ~ 85°C
Inductance (@ 100Khz)12µH ± 10%
Max Power3W
DCR0.29Ω±%
Q21 (@ 0Khz)

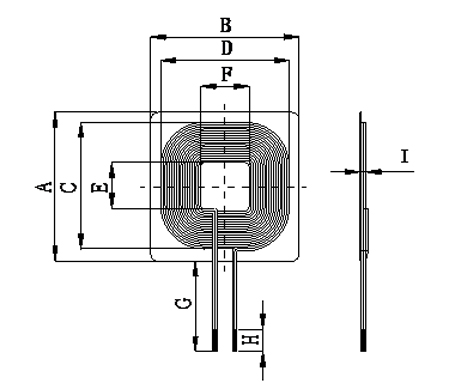

A20REF
B20REF
C17.5REF
D17.5REF
E6.5REF
F6.5REF
G15 ± 2
H3 ± 1
I0.8REF
Coils1
Wire0.2mm*2P
Turns24

General Info

 NWC

NWCLR2020R12R0KBF is end of life
