NWCLR1818C10R5KBF

Part NumberNWCLR1818C10R5KBF
Product Series
Series DescriptionCircular Receiver Inductive Wireless Charging Coil
Construction TypeReceiver Coil, For Charging Designs
Operating Range
(Including Temp. Rise)		-25°C ~ 85°C
Inductance (@ 100Khz)10.5µH ± 10%
Max Power2W
DCR0.34Ω±%

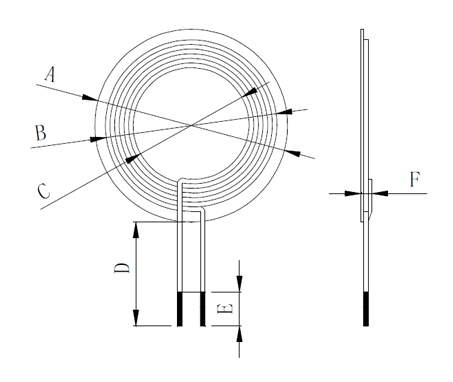

A18.3 ± 0.5
B16.5 ± 0.5
C11 ± 0.5
D15 ± 2
E5 ± 1
F1.0 REF
Coils1
Wire0.25 mm
Turns18

General Info

 NWC

NWCLR1818C10R5KBF is end of life

Specification Info

View Datasheet on Series Page
