NTP337M6.3TRD(25)F

NTP337M6.3TRD(25)F
Product SeriesNTP
Series DescriptionLow ESR Tantalum Cap. Polymer
Temperature Range-55°C ~ 85°C
Capacitance330µF ± 20%
Voltage6.3Vdc
Leakage Current207.9µA
Dissipation Factor0.1
ESR25mΩ (+20°c & 100KHz)
Ripple Current2449mA (100KHz @ +25°c)
Load Life1000Hrs @ 85°C

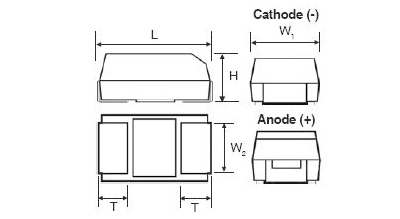

l7.3
w4.3
h2.8
a2.4
P1.3

General Info

 NTP is a NIC Preferred Series available for new designs

NTP337M6.3TRD(25)F is preferred and available for new designs

Specification Info

View Datasheet on Series Page
