| NSPE-T221M35V10X12.8NBYF | |
|---|---|
| Product Series | NSPE-T |
| Series Description | High Voltage Hybrid Alum. E-Cap |
| Automotive Grade Component | Yes |
| Temperature Range | -55°C ~ 125°C |
| Capacitance | 220µF ± 20% |
| Voltage | 35Vdc |
| Leakage Current | 100µA |
| Dissipation Factor | 0.16 |
| ESR | 17mΩ (+20°C & 100KHz) |
| Ripple Current | 1700mA (100KHz @ +125°C) |
| Load Life | 3000Hrs @ 125°C |
 | |

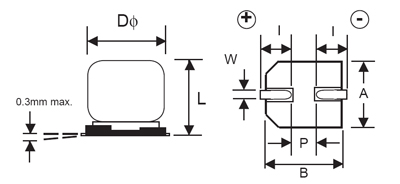

| Diameter | 10 | Length | 12.8 | A | 10.8 | B | 10.8 | I | 3.2 | W | 1.0 ~ 1.4 | P | 4.6 |
NSPE-T is a NIC Preferred Series available for new designs
NSPE-T221M35V10X12.8NBYF is end of life
Alternative recommendation(s):
(Click to Compare)
