NSPE-HF470M63V8X10.5NLBYF

NSPE-HF470M63V8X10.5NLBYF
Product SeriesNSPE-HF
Series DescriptionLong Life Alum E-cap
Automotive Grade ComponentYes
Temperature Range-55°C ~ 105°C
Capacitance47µF ± 20%
Voltage63Vdc
Leakage Current29.61µA
Dissipation Factor0.08
ESR40mΩ (+20°C & 100KHz)
Ripple Current1700mA (100KHz @ +105°C)
Load Life10000Hrs @ 105°C

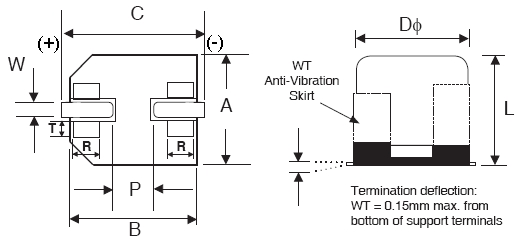

Diameter8.0
Length10.5
A8.3
B8.3
I2.5
W0.7 ~ 1.0
P3.2

General Info

 NSPE-HF is a NIC Preferred Series available for new designs

NSPE-HF470M63V8X10.5NLBYF is preferred and available for new designs

Specification Info

View Datasheet on Series Page
