NSPE-HC331M35V10X10.8NLBYF

NSPE-HC331M35V10X10.8NLBYF
Product SeriesNSPE-HC
Series DescriptionHigh Ripple Current Hybrid Alum E-cap
Automotive Grade ComponentYes
Temperature Range-55°C ~ 105°C
Capacitance330µF ± 20%
Voltage35Vdc
Leakage Current115.5µA
Dissipation Factor0.12
ESR20Ω (100KHz @ +20℃)
Ripple Current3500mA (100KHz @ +105℃)
Load Life5000Hrs @ 105°C

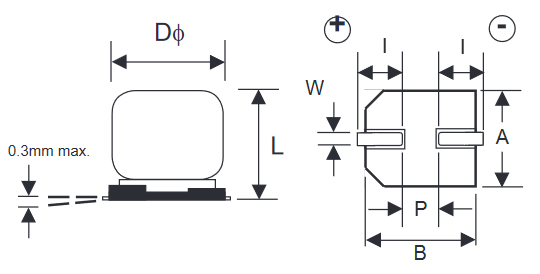

Diameter10.0 ± 0.5
Length10.8 max.
A10.3 ± 0.2
B10.3 ± 0.2
I3.2 ref.
W1.0 ~ 1.4
P4.6 ref.

General Info

 NSPE-HC is a NIC Preferred Series available for new designs

NSPE-HC331M35V10X10.8NLBYF is preferred and available for new designs
