| NRLF103M25V35X20F | |
|---|---|
| Product Series | NRLF |
| Series Description | Snap-In Low Profile Alum. E-Cap |
| Automotive Grade Component | No |
| Temperature Range | -40°C ~ 85°C |
| Capacitance | 10000µF ± 20% |
| Voltage | 25Vdc |
| Leakage Current | 1500µA |
| Dissipation Factor | 0.4 |
| ESR | 61mΩ (+20°C & 120Hz) |
| Ripple Current | 2700mA (120Hz @ +85°C) |
| Load Life | 2000Hrs @ 85°C |
 | |

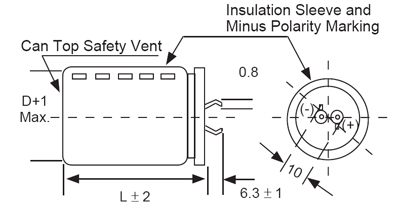

| Diameter | 35 | Length | 20 | Lead Space | 10 | Lead Length | 6.3 |
