| Part Number | NLTN16LM24BXCNTRF |
|---|---|
| Product Series | NLTN |
| Series Description | LAN Transformer |
| Ethernet Type | Dual 10/100 Base-T 1G Single Port |
| IEEE Standard | 802.3ab-1999 |
| Component Type | Inductive |
| Mount Type | SMT |
| Operating Temperature | -40°C ~ 85°C |
| Pins | 24 |
 | ||

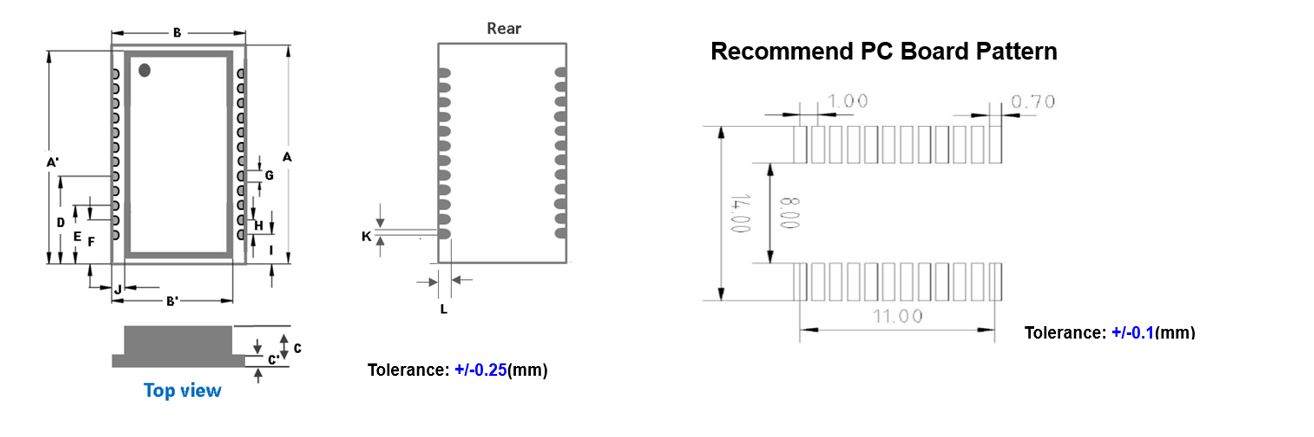

| A | 16.5 ± 0.2 | B | 10.0 ± 0.2 | C | 4.15 Max | C' | 0.8 ± 0.2 |
