NIN-SK4N0DTR1950F

Part NumberNIN-SK4N0DTR1950F
Product SeriesNIN-SK
Series DescriptionUltra High Performance Wirewound RF Chip Inductor
Construction TypeWire-Wound Chip, For Rf Designs
Operating Range
(Including Temp. Rise)		-40°C ~ 125°C
Inductance (@ 100Mhz)4nH ± 0.5nH
DCR30mΩ
Idc1.95A
SRF10000Mhz
Q30 (@ 250Mhz)

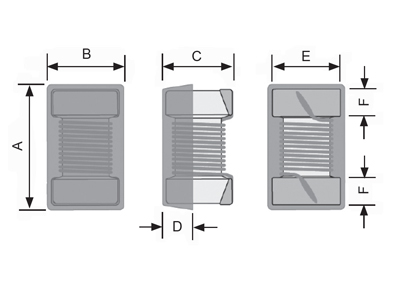

A1.10 ± 0.10
B0.60 ± 0.10
C0.60 ± 0.10
D0.2 ref
E0.50 ± 0.10
F0.2 ± 0.10

General Info

 NIN-S is a NIC Preferred Series available for new designs

NIN-SK4N0DTR1950F is preferred and available for new designs

Specification Info

View Datasheet on Series Page
