NGCM6050UU7R000G1TRF

Part NumberNGCM6050UU7R000G1TRF
Product SeriesNGCM
Series DescriptionCeramic Chip Antenna
Mount TypeSMT
Operating Temperature-40°C ~ 85°C
Center Frequency7GHz
Bandwidth-1
Low Frequency Range6000
High Frequency Range8000
Peak Gain4.5
Impedance50Ω
VSWR2

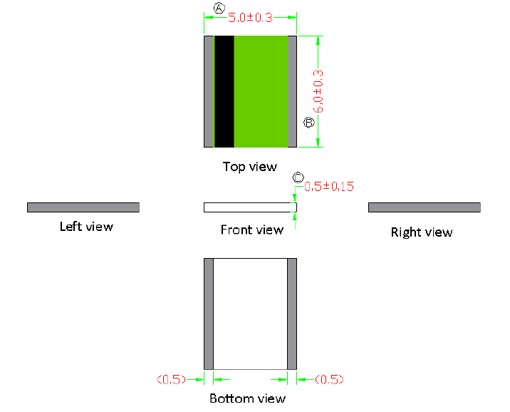

L6.0
W5.0

General Info

 NGCM is a NIC Focus Series and most preferred for new designs

NGCM6050UU7R000G1TRF is a focus preferred for new designs

Specification Info

NGCM6050UU7R000G1TRF PDF Data Sheet
