NGCM1206JW2R450G1TRF

Part NumberNGCM1206JW2R450G1TRF
Product SeriesNGCM
Series DescriptionCeramic Chip Antenna
Mount TypeSMT
Operating Temperature-40°C ~ 85°C
Center Frequency2.45GHz
Bandwidth100 MHz
Low Frequency Range_
High Frequency Range_
Peak Gain4.5
Impedance50Ω
VSWR_

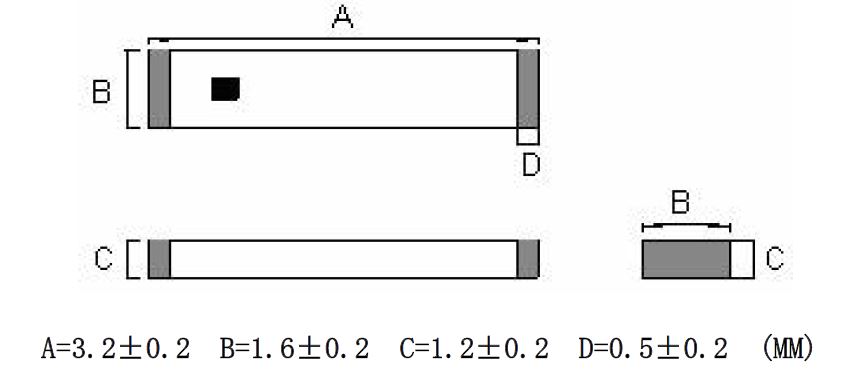

L3.2
W1.6

General Info

 NGCM is a NIC Focus Series and most preferred for new designs

NGCM1206JW2R450G1TRF is a focus preferred for new designs

Specification Info

NGCM1206JW2R450G1TRF PDF Data Sheet
