NCB-H0805A221TR300F

Part NumberNCB-H0805A221TR300F
Product SeriesNCB-H
Series DescriptionHigh Current Ferrite Chip Bead
Mount TypeSMT
Operating Temperature-40°C ~ 125°C

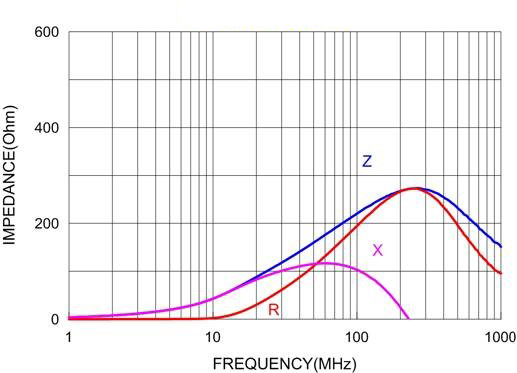

Impedance @ 100Mhz220Ω ± 25%
Current Rating3000mA
DCR0.04Ω

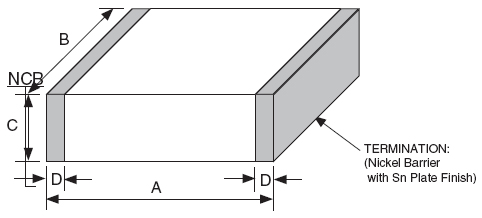

A2.0±0.2
B1.25±0.2
C0.9±0.2
D0.5±0.3

General Info

 NCB-H is a NIC Preferred Series available for new designs

NCB-H0805A221TR300F is preferred and available for new designs

Specification Info

View Datasheet on Series Page
