NMC0603X5R225K6.3TRPF CAP SMT 0603 2.2µF 6.3VDC


NMC0603X5R225K6.3TRPF
Product SeriesNMC High Cap
Series DescriptionHigh CV X5R Dielectric MLCC
DielectricX5R
Dielectric Tolerance±15%
Temperature Range-55°C ~ 85°C
Capacitance2.2µF ± 10%
Voltage6.3Vdc
IR45.45 MΩ min.
Dielectric Withstanding Voltage250% of Rated Voltage for 5 ± 1 sec., 50mA max.

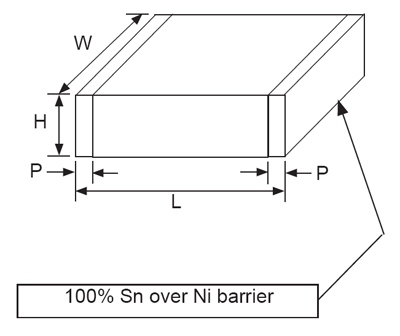

L1.6 ± 0.15
W0.8 ± 0.15
H1.0 max.
P0.1~0.65

General Info

 NMC High Cap is a NIC Focus Series and most preferred for new designs

NMC0603X5R225K6.3TRPF is a focus preferred for new designs

For New Designs NIC recommends:
(Click to Compare)

View Datasheet on Series Page

View terms of use, before using this product.

Application Focus

  • Contact NIC for application info
Product Resource Center

Environmental Info

  • Moisture Sensitiity Level (MSL) - 1
  • RoHS Compliant - Yes
  • China RoHS Compliant - Yes
  • EU REACH Compliant: Yes
  • Halogen Free: Yes
